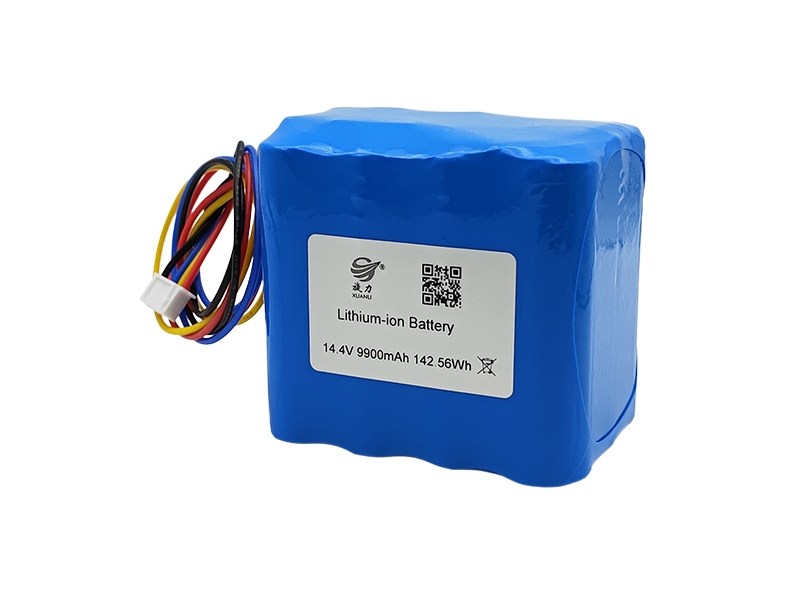

14.4V cylindrical lithium battery product model: XL 14.4V 9900mAh
Technical parameters of 14.4V cylindrical lithium Battery (Specific design according to customer requirements - voltage/capacity/size/circuit)
Single battery model: 18650
· Single cell voltage: 3.6V
· The nominal voltage of the battery pack after assembly: 14.4V
· Single battery capacity: 3.3Ah
· Battery combination method: 4 series and 3 parallel
· The voltage range of the combined battery is 10 to 16.8V
· Battery capacity after combination: 9.9Ah
· Battery pack power: 142.56Wh
· Battery pack size: 56 * 76 * 74mm
· Maximum discharge current: <9.9A
· Instantaneous discharge current: 19.8~29.7A
· Maximum charging current: 0.2C
· Charge and discharge cycles: > 500 times
· Main chips: (Seiko, TI)
14.4V cylindrical lithium battery
· Comply with relevant national standards and requirements for batteries
· All battery products are calibrated and tested before leaving the factory and can be used directly and normally.
